Workflow Stages

Important

Information and features vary according to the roles to which you belong and the permissions associated with those roles. For more information, contact your module manager or your campus support team.

Once Workflow tracks have been created, you can add a sequence of stages that submitted forms (also called documents in Workflow) must follow. Use the following stage options to set up your workflows:

  • Approvers: individuals responsible for reviewing and signing off on a form

  • Emails: templates you can tailor and send automatically when certain events occur

  • Procedures: SQL procedures that execute when certain events occur

  • Rules: custom conditions that mandate when and how forms move through the workflow

Stage Tabs

The following fields are available on the Definition tab.

  • Name - The name of the stage. This name is available to Workflow administrators and to approvers when they review the documents.

  • Definition - Enter a description of the stage in this field (optional). This description will only be available to Workflow administrators and is only visible when performing administrative functions.

  • Number of Required Responses - Enter in the number of required responses/approvals for each form submitted to the track that passes through this stage. If this field is left blank, a response will be required from each assigned approver by default.

  • Log Emails to Audit Trail - Can be used to log emails sent by the Workflow feature. For each scheduled email sent, a new audit row will be automatically created and attached to the form. Any audit information that is stored is displayed at the bottom of a document in the review process.

  • Execute Statements - Can be used to execute any mapped statements or stored procedures from Forms that were set to execute upon approval. All required approvers in this stage MUST approve the document before the statements are executed.

The following fields are available on the Approvers tab.

  • Approver Type

    • Static - Static approvers are always the same regardless of who submitted the document and are added to the track by ID number.

    • Dynamic - Dynamic approvers may be different depending on who submitted the document and are identified by executing a pre-defined SQL query.

  • Approver - Begin typing the name of the approver and select from the drop-down list of users that appears.

  • Can Approve For - This option can be used to give permission to any user to approve on behalf of another approver that has already been added.

  • Required/Authoritative - Only approvals by approvers with this box checked are considered authoritative for moving a submission out of this stage. If unchecked, any approval is treated as a review and no action is triggered.

  • Allow Edit - This gives the approver permission to make changes to the data that was in the original Forms submission. All changes to single-response questions will be logged in the audit. Changes to multi-response questions such a checkboxes and collection grids do not currently get logged.

  • Allow Reroute - This setting indicates that the user can assign the document to a different track during the approval process.

On the Emails tab, the administrator can create email templates that can be automatically sent on certain events. You can include data point values in the emails being sent by enclosing the tag name in curly braces. For example, the data Point 'Check Amount' would be included in the email as '{Check Amount}'.

The following fields are available from the Emails tab.

  • On Event

    • OnStageProgress - Email sent when all required approvers have approved the submission and the document is moving to the next stage. This event always occurs in the current stage the document is assigned to and executes when the document is in the process of moving to the next stage. For example, you can use this event if you wanted to send an email to all approvers in the stage and say, "Thank you for your response. The document is moving on to the next stage."

    • OnStageRegress - Email sent when any required approver rejects the submission and the document is moving to the previous stage

    • OnReRoute - Email sent when the document is assigned to a different track during the approval process

    • OnAnswerChanged - Email sent when any approver modifies the data from the original submission

    • OnReturnToSender - Email sent when a required user in the first stage of the track rejects the document

    • OnAddedtoTrack - Email sent when the document is initially added to the Workflow track

    • OnRequiredApproval - Email sent any time an approver hits the approve button. This rule may execute multiple times in each stage if there are multiple approvers.

    • OnAssignedToStage - Email sent immediately when the document is added to a given stage. This can be used to notify approvers that they have just received a document to approve.

    • Scheduled - An email can be scheduled to be sent after there has been no response for a specified amount of days. This email can also be configured to resend the email after a specified amount of days, and will keep resending the email every X amount of days until there is a response.

  • Email From - Will be displayed as the sender of the email

  • Email To - This is an optional setting if using "Send to Approver" or "Send to Submitter". This is a static email address of a user who should receive an email on the selected event.

  • Send To Approver - The email will be sent to all approvers in the current stage.

  • Send to Submitter - The email will be sent to the user who originally submitted the document if the Email Address was passed using Event Rules in Forms.

  • Subject - The subject of the email that is sent

  • Message - The message of the email that is sent

Stored procedures can be used to update data in external databases when a given event takes place in a Workflow stage. Stored procedures will be executed on the selected event for this stage. Your procedures must only accept the parameters "DocumentID" and "ApproverID". No other values will be passed. These procedures are usually used to update supplemental information in your desktop application or your external database. Stored procedures are created in SQL Server.

The following fields are available from the Procedures tab.

  • Name - the name of the stored procedure

  • Database - the database that will be updated when the event takes place

  • Event

    • OnStageProgress - Procedure executes when all required approvers have approved the submission on that stage. This event always occurs in the current stage the document is assigned to and executes when the document is in the process of moving to the next stage.

    • OnStageRegress - Procedure executes when any required approver rejects the submission and the document is moving to the previous stage

    • OnReRoute - Procedure executes when the document is assigned to a different track during the approval process

    • OnAnswerChanged - Procedure executes when any approver modifies the data from the original submission

    • OnReturnToSender - Procedure executes when a required user in the first stage of the track rejects the document

    • OnAddedToTrack - Procedure executes when the document is initially added to the track

    • OnRequiredApproval - Procedure executes any time an approver hits the approve button. This rule may execute multiple times in each stage if there are multiple approvers.

    • OnAssignedToStage - Procedure executes immediately when the document is added to a given stage. This can be used to notify approvers that they have just received a document to approve.

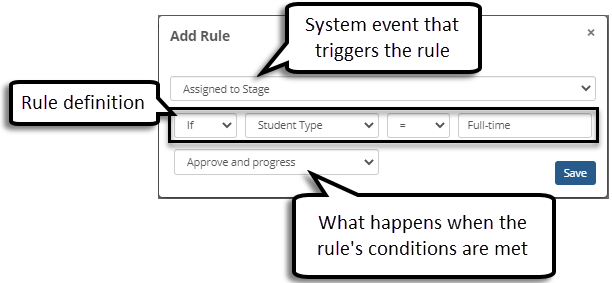

Rules can be used to automatically execute an event, such as adding a comment to the document or approving and progressing the document, if the configured data points meet the specified criteria.

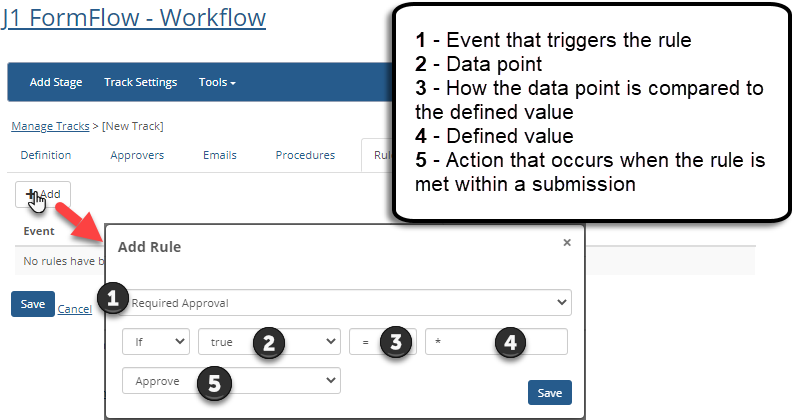

  1. Select the event on which the rule executes:

    • OnStageProgress - Executes when all required approvers have approved the submission on that stage. This event always occurs in the current stage the document is assigned to and executes when the document is in the process of moving to the next stage

    • OnStageRegress -  Executes when any required approver rejects the submission and the document is moving to the previous stage

    • OnReRoute - Executes when the document is assigned to a different track during the approval process

    • OnAnswerChanged - Executes when any approver modifies the data from the original submission

    • OnReturnToSender - Executes when a required user in the first stage of the track rejects the document

    • OnAddedToTrack - Executes when the document is initially added to the Workflow track

    • OnRequiredApproval - Executes any time an approver hits the approve button. This rule may execute multiple times in each stage if there are multiple approvers.

    • OnAssignedToStage - Executes when the document is added to the stage. This can be used to notify approvers that they have just received a document to approve.

  2. Select True to execute the rule when the triggering event occurs, or select a data point from the drop-down to add more conditions to the rule.

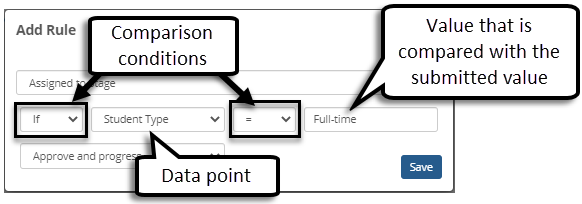

  3. Select the conditions that determine how the submitted value is compared to a defined value.

  4. Enter the value that will be compared to the submitted value.

  5. Select the action that occurs when a document meets the criteria defined above:

    • AddComment - Inserts a comment about the document that is visible to reviewers.

    • Approve - Approves the document and keeps it in the current stage.

    • ApproveAndProgress - Approves and progresses the document to the next stage.

    • Change Stage - Moves the document to the selected stage without requiring approval.

    • DeleteDocument - Removes the document from the Workflow track.

    • Reject - Rejects the document and updates its status from Open to Closed.

    • Reroute - Moves the document to another Workflow track.

  6. Click Save.

You can add multiple approvers but only require any one approver to approve the document by setting all of the approvers as the Required/Authoritative approver on the Approvers tab. On the Definition tab, set the Number of Required Responses to the number of approvers that are needed for the document to proceed. In this example, you would set the Number of Required Responses to 1.

Forms can be rerouted to different tracks with rules.

Tip

Existing rules cannot be updated, but you can create a new rule for rerouting a form, and delete the rule you no longer need.

It can be helpful to add a rule to log a comment to the document that lets other users know a condition was met and the form/document was rerouted.

  1. Click Add.

  2. Set up the conditions that must be met for the form/document to be rerouted.

  3. From the bottom left drop-down, select Reroute. The track drop-down options appear.

  4. From the Track drop-down select the track you want the form/document to be rerouted to.

  5. Click Save changes.

Yes, by adding a new rule.  Workflows aren't required to be in sequence. You can set up a workflow that goes from Stage 1 to Stage 3 to Stage 5 and then backtrack to Stage 2.

Tip

Existing rules cannot be updated, but you can create a new rule for rerouting a form, and delete the rule you no longer need.

It can be helpful to add a rule to log a comment to the document that lets other users know a condition was met and the form/document was rerouted.

  1. Click Add.

  2. Set up the conditions that must be met for the form/document to be rerouted.

  3. From the bottom left drop-down, select Change stage. The stage drop-down options appear.

  4. From the Stage drop-down select the track stage you want the form/document to be sent to.

  5. Click Save changes.
