Import Institution
Overview
The Import Institution utility provides a quick and easy way to build Jenzabar SONIS institution data. Institutions in the SONIS system can be high schools, secondary schools, sponsors, and other organizations, including affiliated schools. The utility is most useful when bringing in data from another student information system to SONIS, but it can be used any time a large number of institutions need to be added at once. The page itself includes everything you need to get started, including a grid of the fields in the table and a downloadable file with the proper column headings.
Note that the import process can only be used to create new institution data. It cannot be used to edit existing data. Institutions imported through this utility must be edited or deleted from the Institution Add/Edit page.
Importing Institutions
Table & Schema

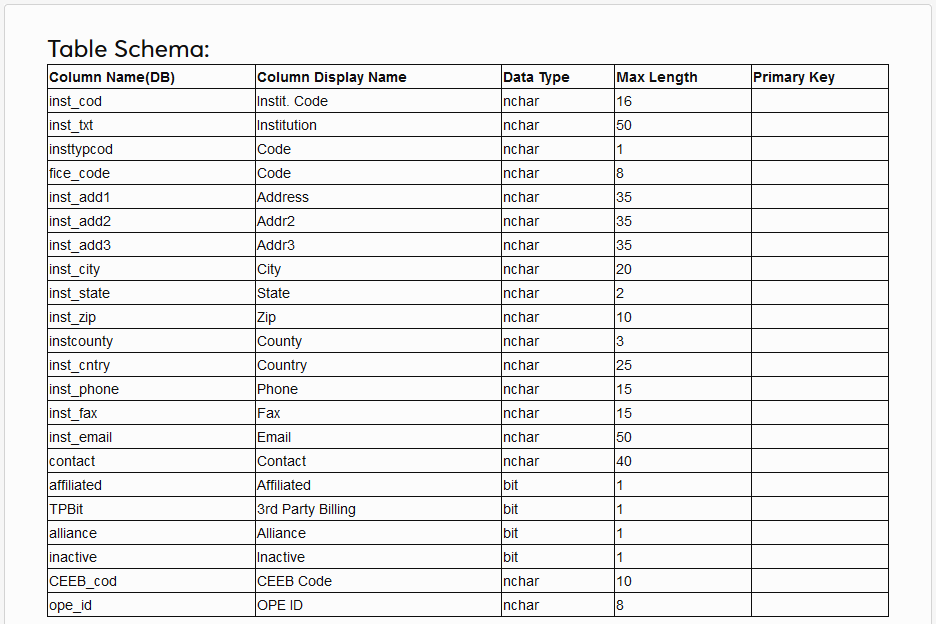

Before preparing an import file, administrators should study the Intuition Table Schema and use it to build their import file.
The Column Name is how the field is designated in the SONIS database. The Column Display Name is how the field is labeled on the frontend.
The Data Type column denotes the type of characters that can and should be stored in the field. Nchar fields will accept characters of any type with the exception of some special characters that may be blocked to prevent errors. Bit fields are used to turn things on and off and must be either a 0 to designate off or a 1 for on.
The Primary Key is the data that is used to name the program in the database. It cannot be edited once it's been created.

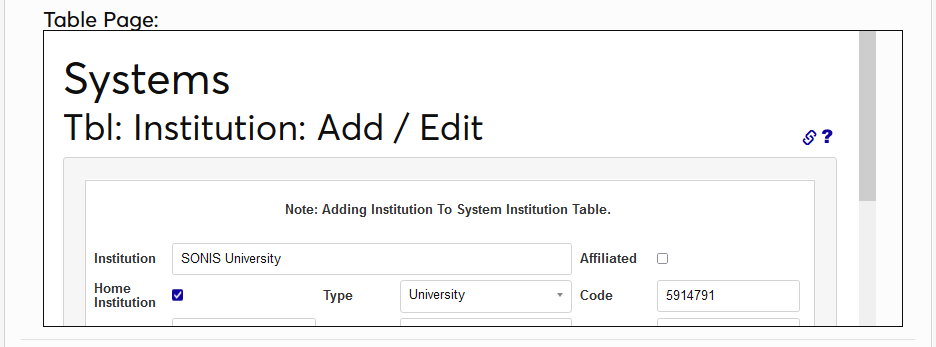

Just below the Table Schema is an image of the Institution Add/Edit page. This is meant as an example for informational purposes. The fields displayed cannot be edited from this page.
Preparing the File

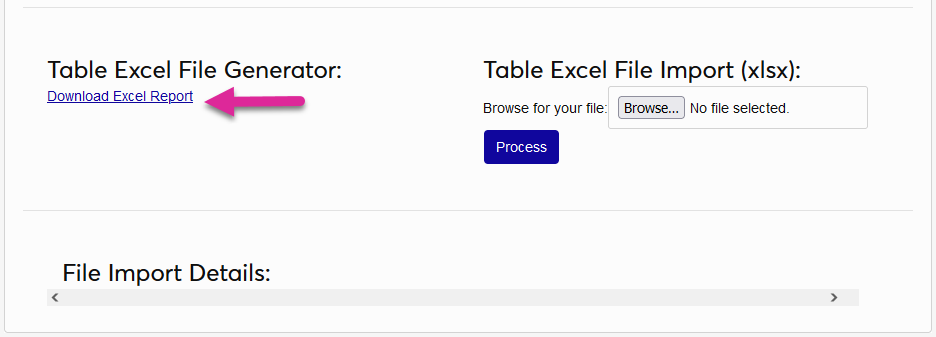

Click Download Excel Report for a blank copy of the file that will need to be uploaded to the SONIS system.
Fill out the form with the required data for each institution based on the table schema, being sure to follow the Data Type and Max Length restrictions. Note that the institution code can be any 16-character combination of letters and/or numbers as long as there are no repeats within the spreadsheet or the existing table. If all integers are used, the fields in this column will need to be reformatted to Number with no decimals to display the number properly.
Importing Data

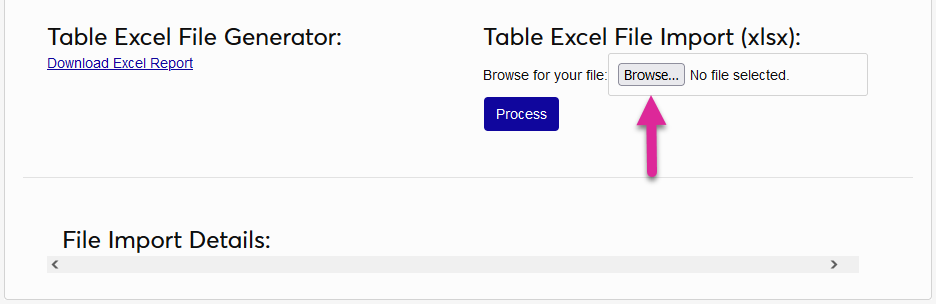

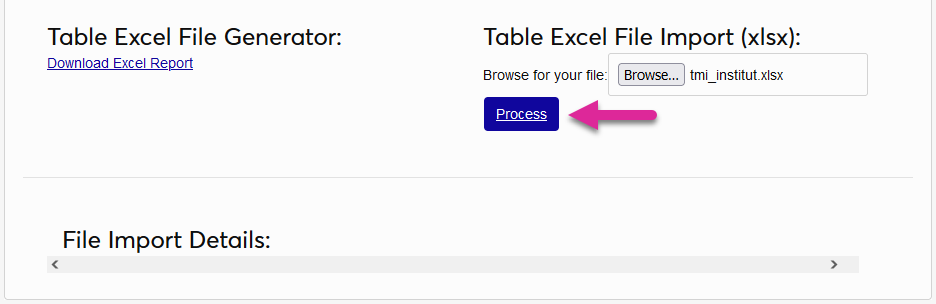

Click Browse and select the saved file. Then click Process to continue.

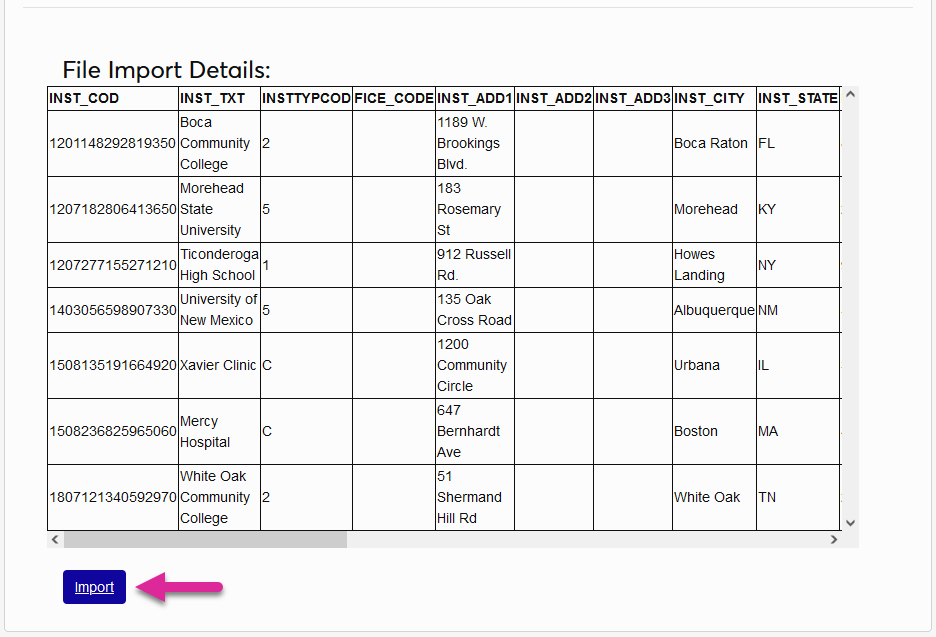

The data being imported is displayed in the File Import Details box. Any errors within the data are marked with a red X. Hover over the X to see the cause of the error.
Once the data is correct and there are no errors remaining, click Import to complete the process.

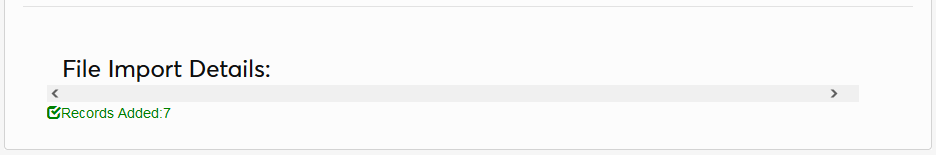

Once the page reloads, the results of the import are displayed at the bottom of the screen.
