User Defined Columns, Tables, and Forms



Do NOT create a column in the UDF table that has the same name as an existing udef column in its parent table.

If you name a column in the CANDIDACY_UDF table the same as a udef column in the CANDIDACY table, you will receive an error because J1 Desktop does not know from which table to get the data.

The User Defined Forms window displays user-customizable forms that are available for the user-defined columns on the master database table and/or its associated _UDF table.



The names of the tabs shown/referenced below may have been changed by an administrator to be more meaningful to users.

Additional user-defined tables related to J1 master database tables are provided by default and user-defined columns can be created on these tables by your System Administrator.



It is very important when you customize a form that you keep the primary key columns of the table as the first columns in the SQL Statement and in the table column order, even if you add one or more tables. This affects the ability to save the data if the row did not previously exist.

Messages

Tabs

The User Defined Forms window has three tabs:

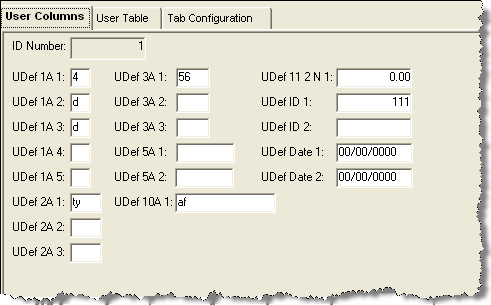

User Columns

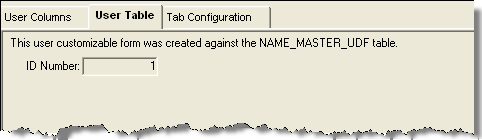

User Table

Tab Configuration

These tabs are displayed or hidden, depending on the kind of user-defined columns available and the permissions granted to the user.

By default, the User Columns tab is displayed when the User Defined Forms window initially opens. However, the last tab accessed by the user is automatically saved to the USER_PREFERENCES table for that form for that user.



If the user was last on the User Columns tab for NameMaster and the User Table tab for AddressMaster, the User Columns tab will be selected when the user opens the window from the Name Entity window (or any Name tab) and the User Tables tab will be selected when the user opens the window from the Maintain Address window (or any Address tab). However, if the last tab accessed was the Tab Configuration tab, the first tab displayed will be selected when the user opens the window again.

Making User Defined Columns and Custom Tables Availble in Form Builder and FormFlow
